Technical specification:
Overall length: 3210mm
Overall width: 1015mm
Overall cover (when overlapped twice): 914.4mm
Radius: 2.11m
Span width: 2910mm
Arc height: 580mm
Thickness: 0.7mm
Weight: 23kg

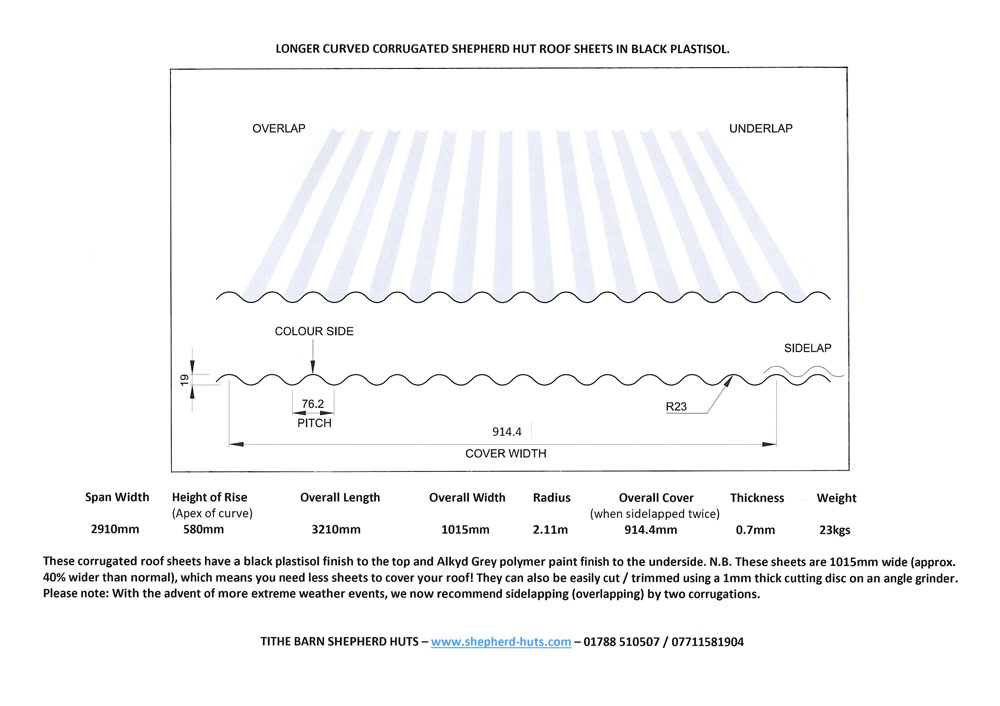

Technical drawing - click here
The sheets are actually 40% wider (with 14 corrugations rather than 10) and because they are 40% wider, you get an additional benefit through needing fewer sheets and therefore not losing so much coverage in overlaps.

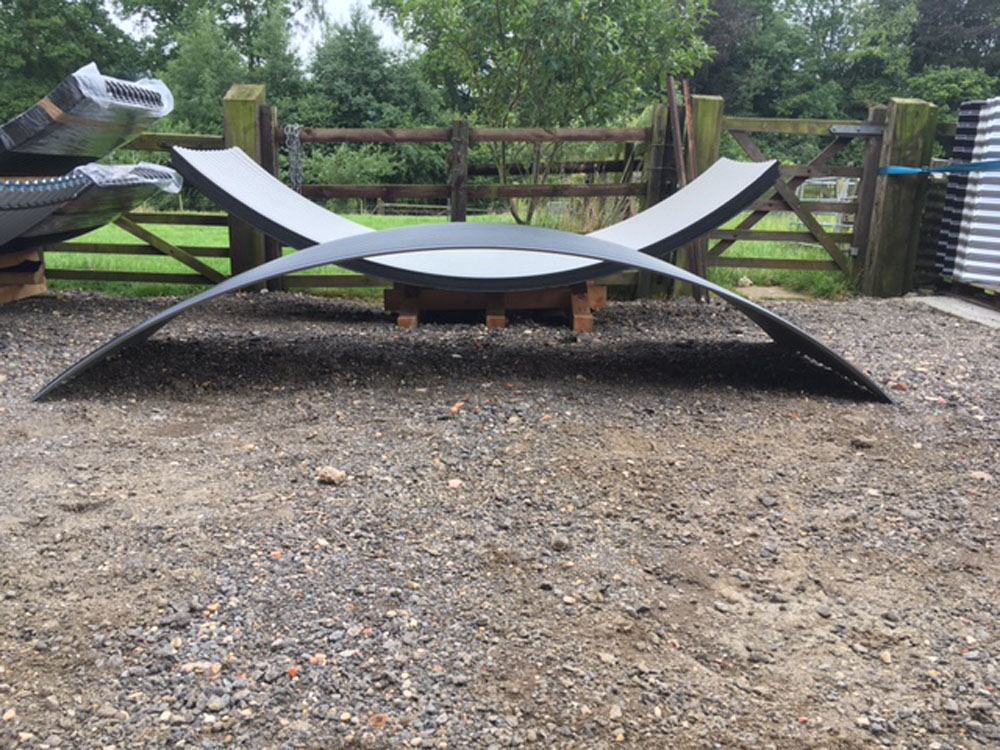

About our Longer shepherd hut roof panels:

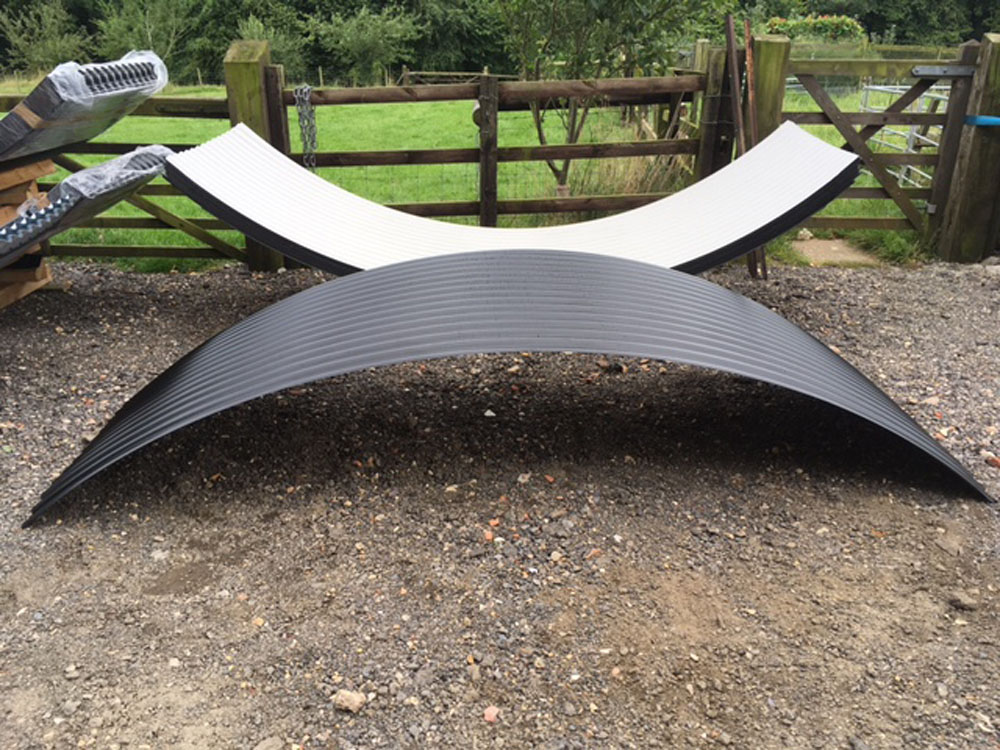

These galvanised, curved, corrugated roofing sheets are finished in Black Plastisol to the top and grey to the underside. They are longer than our standard roof sheets, whilst still as wide, and therefore give more overhang for wider huts of 2438mm (8’0”) and over .
Useful info:
The distance between the ends on the flat (the span) is 2910mm, with a height of approx. 580mm from the ground to the apex of the curve. Our curved roofing sheets are wider than normal, which means you need fewer sheets to cover your roof.
