Technical specification:
Overall Length: 2865mm
Overall Width: 1092mm
Overall Cover (when overlapped): 990.6mm
Radius: 2100mm
Thickness: 0.7mm
Weight: 19kgs

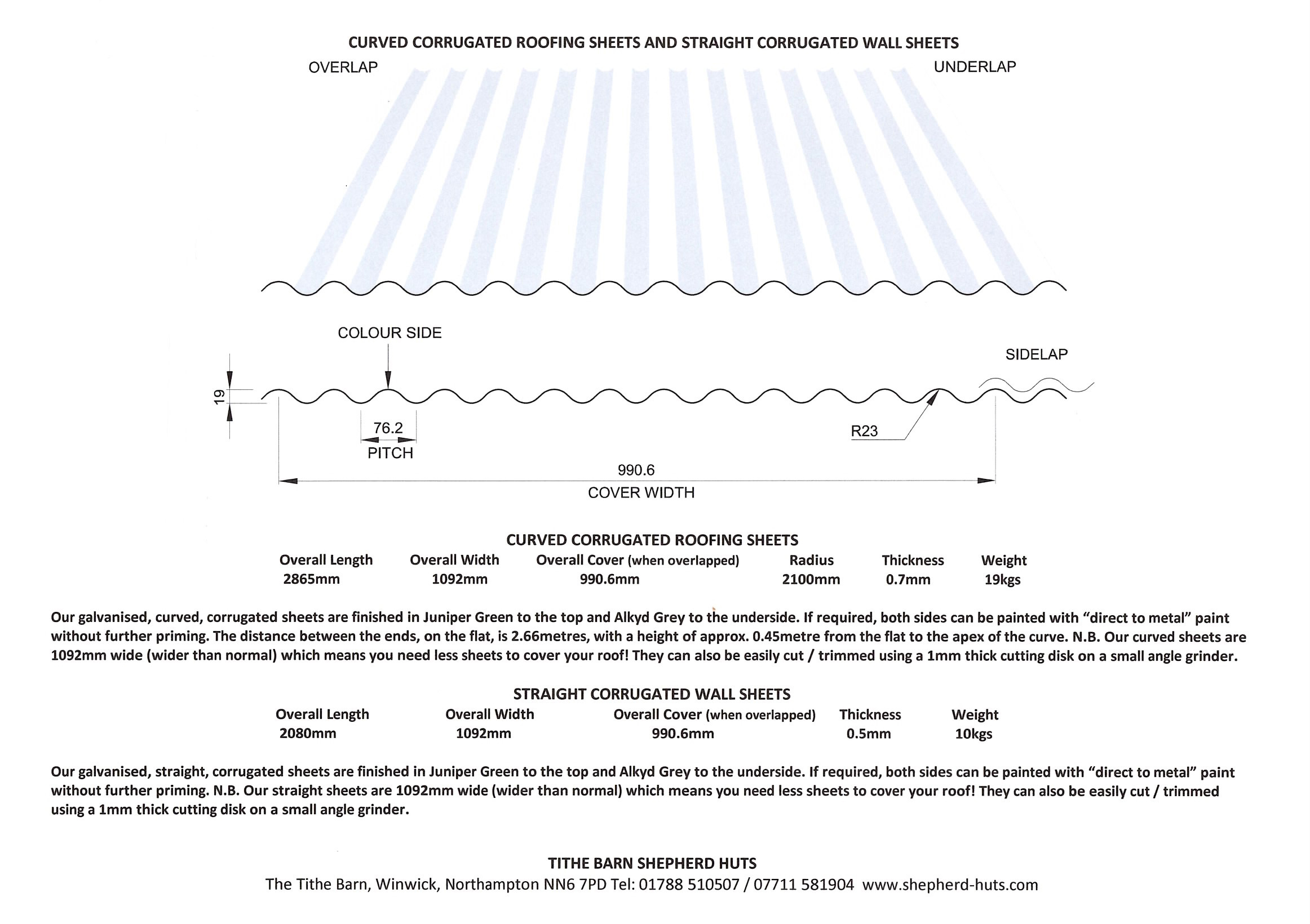

Technical drawing - click here
The sheets are actually 40% wider (with 14 corrugations rather than 10) and because they are 40% wider, you get an additional benefit through needing fewer sheets and therefore not losing so much coverage in overlaps.
About our shepherd hut roof panels:

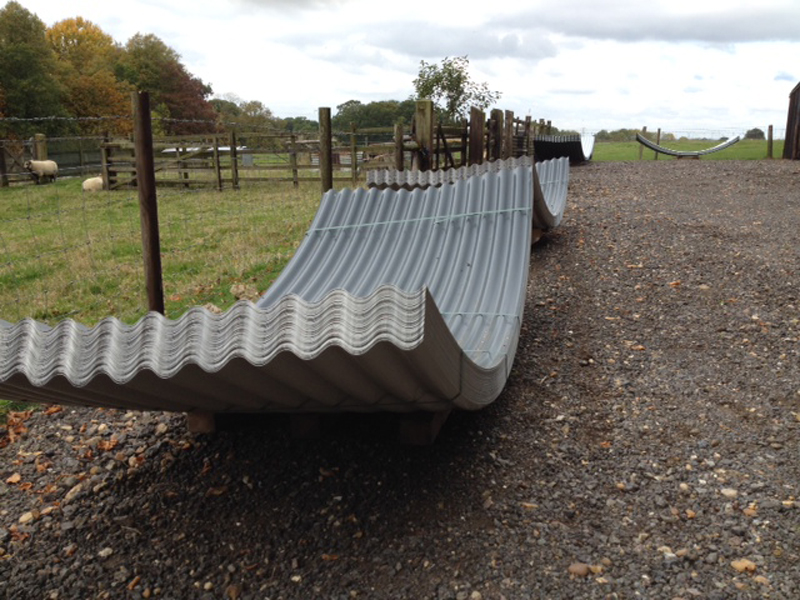

These galvanised, curved, corrugated sheets are finished in an Alkyd Grey primer to the top, for overpainting with a “direct to metal” paint. Please note that the colour to the underside may vary!
Useful info:

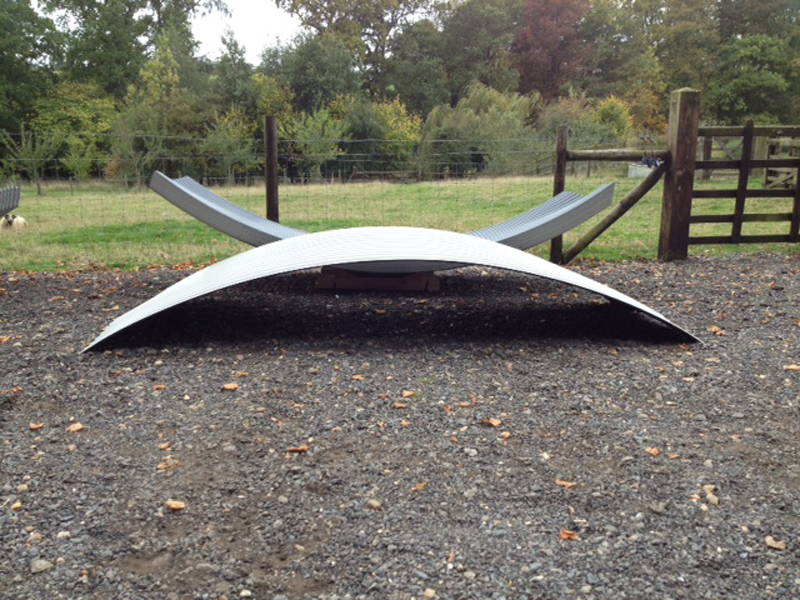

The distance between the ends, on the flat, is 2.66 metres, with a height of approx. 0.45metre from the flat to the apex of the curve. Our curved roofing sheets are wider than normal, which means you need fewer sheets to cover your roof!
